Co-op: Air Quality Calibration Chamber

  Posted on June 23, 2015   ·   1 min read   ·   #work  #coop  #design

Background: Welcome to TZOA (pronounced ‘zoa’) - the world’s most advanced environment tracker. TZOA uses internal sensors to measure your air quality, temperature, humidity, atmospheric pressure, ambient light, and UV (sun) exposure, all in one wearable device.

Objective: Design and build a purified test chamber with zero air particulate to calibrate the TZOA devices against the DusTrak DRX 8533. An aerosolized cloud of ultrafine (0.3 - 20 μm) test dust was used to create the particle events.

Source: Indiegogo Campaign Page

Client: TZOA

Acknowledgements: This project was completed under MistyWest with the guidance of Taylor Cooper.

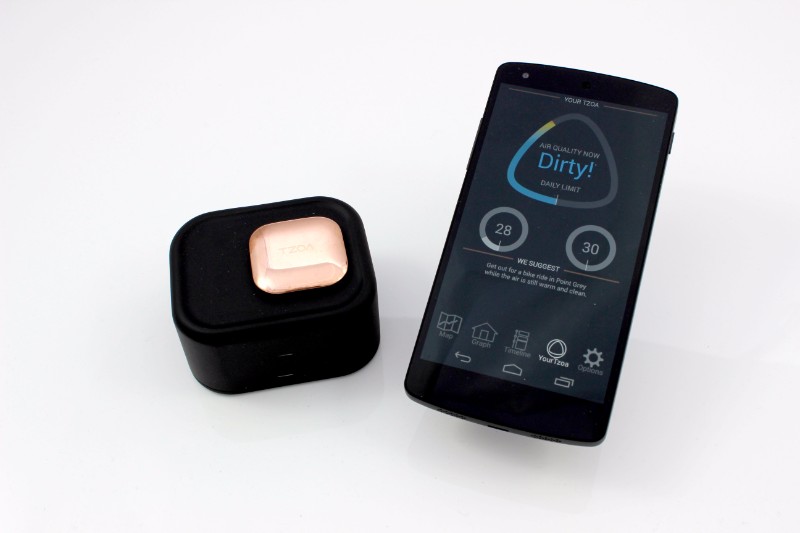

The TZOA paired with a smartphone to demonstrate the environment tracking dashboard.

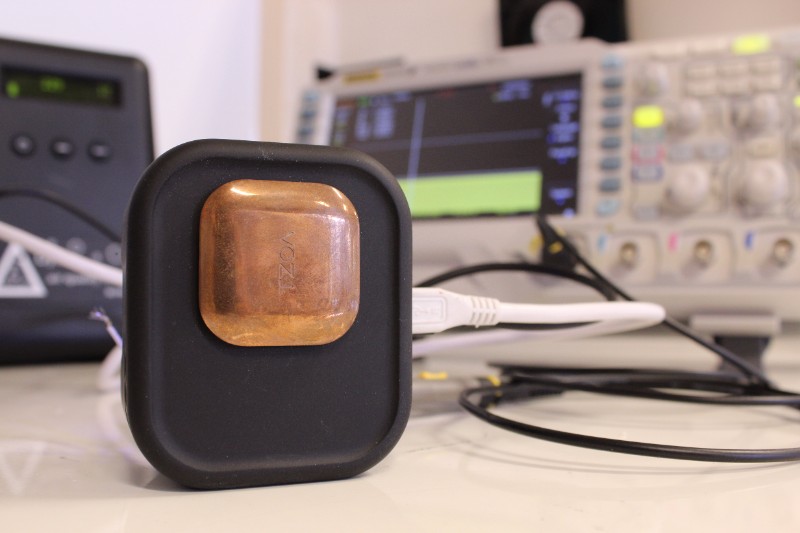

Close up of the device in the test environment.

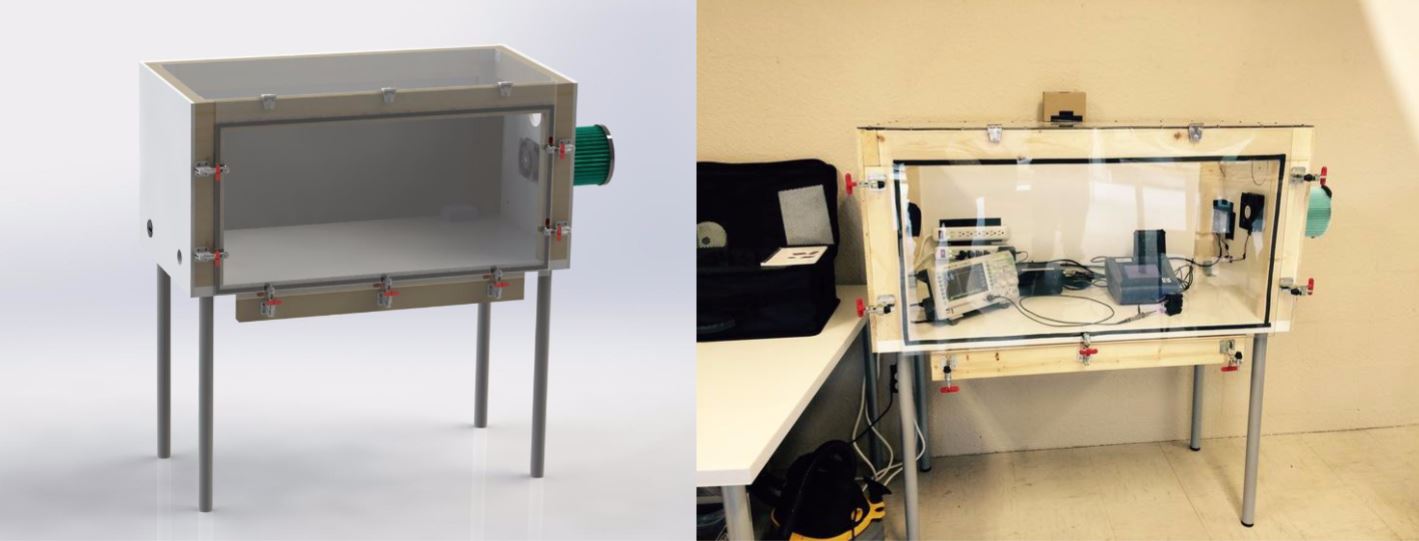

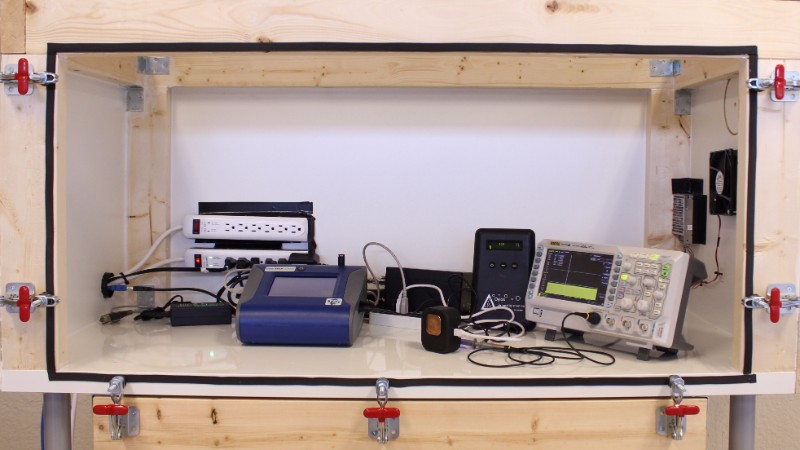

Overview of the test equipment inside the test chamber.

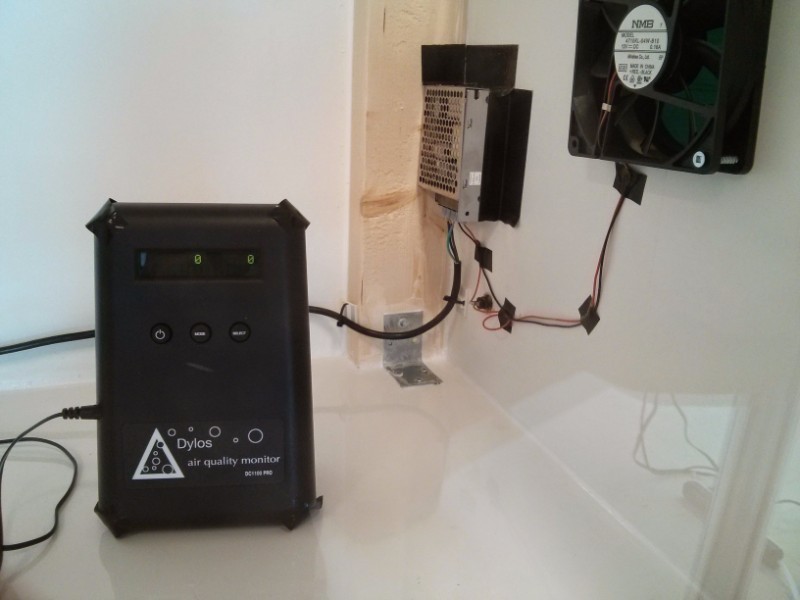

The Dylos air quality monitor showing zero particulate measurements. A HEPA filter was used to provide the filtration.

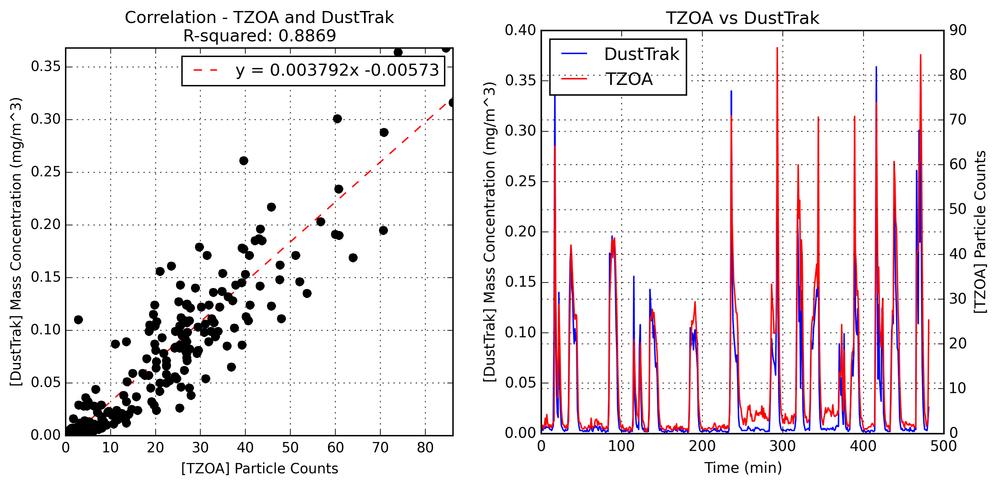

Correlation data between the TZOA vs DustTrak devices.
